产品特点：损耗小，内部温升低，使用寿命长，使用安全可靠等特点；
执行标准：满足《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》标准；
产品用途：广泛用于电风扇、抽油烟机、碎纸机、洗衣机、水泵等电器及设备的启动运行。
主要技术参数
额定电压：110V.AC-660V.AC | 稳态过电压：允许1.1Un下长期运行 |
| 容量偏差：±3%、±5%、±10% | 稳态过电流：允许1.3ln下长期运行 |
| 耗损角正切值：tgδ≤0.0025(100Hz) | 优选气候类别：40/70/21 40/85/21 40/105/21 |
| 极间耐压：2Un/5s | 运行等级：C（30000h） |
| 极壳耐压：2000V.AC or 2Un+1000VAC | 安全等级：P0 |
| 产品认证：VDE、UL、CUL、CQC |
|
![CBB60-Ⅱ型 交流金属化薄膜电容器]( "CBB60-Ⅱ型 交流金属化薄膜电容器")
规格表
| CBB60-II型电容器规格表 Type CBB60-II Capacitor specification sheet |
| 电 压 Voltage |
| 250VAC | 300VAC | 350VAC | 400VAC | 450VAC | 500VAC | 600VAC |

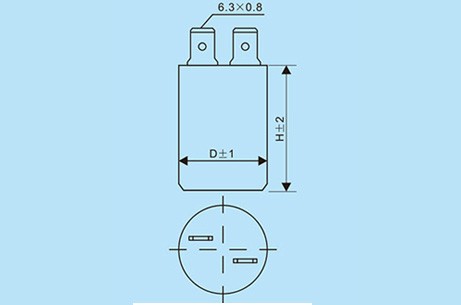

| 容量 Capacitance | D | H | D | H | D | H | D | H | D | H | D | H | D | H |
| 0.5 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 26 | 53 |
| 1.5 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 30 | 50 |
| 2 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 26 | 53 | 30 | 50 |
| 2.5 | 25 | 39 | 25 | 39 | 25 | 39 | 25 | 39 | 26 | 53 | 26 | 53 | 30 | 60 |
| 3 | 25 | 39 | 25 | 39 | 26 | 53 | 26 | 53 | 26 | 53 | 30 | 50 | 30 | 60 |
| 4 | 25 | 39 | 25 | 39 | 26 | 53 | 26 | 53 | 30 | 50 | 30 | 60 | 35 | 60.5 |
| 5 | 25 | 39 | 26 | 53 | 30 | 50 | 30 | 50 | 30 | 60 | 30 | 60 | 35 | 71 |
| 6 | 26 | 53 | 26 | 53 | 30 | 50 | 30 | 50 | 30 | 60 | 35 | 60.5 | 40 | 68 |
| 8 | 26 | 53 | 30 | 50 | 30 | 60 | 30 | 60 | 35 | 60.5 | 35 | 71 | 40 | 68 |
| 10 | 26 | 53 | 30 | 50 | 35 | 60.5 | 35 | 60.5 | 35 | 71 | 40 | 68 | 45 | 81 |
| 12.5 | 30 | 50 | 30 | 60 | 35 | 60.5 | 35 | 60.5 | 40 | 68 | 40 | 68 | 45 | 81 |
| 15 | 30 | 60 | 35 | 60.5 | 35 | 71 | 35 | 71 | 40 | 68 | 40 | 80 | / | / |
| 17.5 | 30 | 60 | 35 | 60.5 | 40 | 68 | 40 | 68 | 40 | 80 | 45 | 85 | / | / |
| 20 | 30 | 60 | 35 | 71 | 40 | 68 | 40 | 68 | 45 | 85 | 45 | 85 | / | / |
| 22 | 35 | 60.5 | 35 | 71 | 40 | 68 | 40 | 68 | 45 | 85 | 45 | 93 | / | / |
| 25 | 35 | 60.5 | 35 | 71 | 40 | 80 | 40 | 80 | 45 | 85 | 45 | 93 | / | / |
| 30 | 35 | 71 | 40 | 68 | 45 | 85 | 45 | 85 | 45 | 93 | 50 | 100 | / | / |
| 35 | 35 | 71 | 40 | 80 | 45 | 85 | 45 | 85 | 50 | 100 | 50 | 110 | / | / |
| 40 | 40 | 68 | 40 | 80 | 45 | 93 | 45 | 93 | 50 | 100 | / | / | / | / |
| 45 | 40 | 68 | 45 | 85 | 45 | 93 | 45 | 93 | 50 | 100 | / | / | / | / |
| 50 | 40 | 80 | 45 | 85 | 50 | 100 | 50 | 100 | 50 | 110 | / | / | / | / |
| 55 | 40 | 80 | 45 | 85 | 50 | 100 | 50 | 100 | / | / | / | / | / | / |
| 60 | 40 | 80 | 45 | 93 | 50 | 100 | 50 | 100 | / | / | / | / | / | / |
| 65 | 45 | 85 | 45 | 93 | 50 | 110 | 50 | 110 | / | / | / | / | / | / |
| 70 | 45 | 85 | 45 | 93 | 50 | 110 | 50 | 110 | / | / | / | / | / | / |
| 75 | 45 | 85 | 50 | 100 | / | / | / | / | / | / | / | / | / | / |
| 80 | 45 | 93 | 50 | 100 | / | / | / | / | / | / | / | / | / | / |
| 85 | 45 | 93 | 50 | 100 | / | / | / | / | / | / | / | / | / | / |
| 90 | 45 | 93 | 50 | 100 | / | / | / | / | / | / | / | / | / | / |
| 95 | 45 | 93 | 50 | 100 | / | / | / | / | / | / | / | / | / | / |
| 100 | 45 | 93 | 50 | 110 | / | / | / | / | / | / | / | / | / | / |
| ◆特殊要求可根据用户要求协商制作。Special requirement can be fulfilled at the request of customers. |
