产品特点：体积小，内部温升低，使用寿命长、额定温度高，使用安全可靠等特点；
执行标准：满足《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》标准；
产品用途：广泛应用于并联补偿型的各式管式荧光灯和金属卤化物灯具。

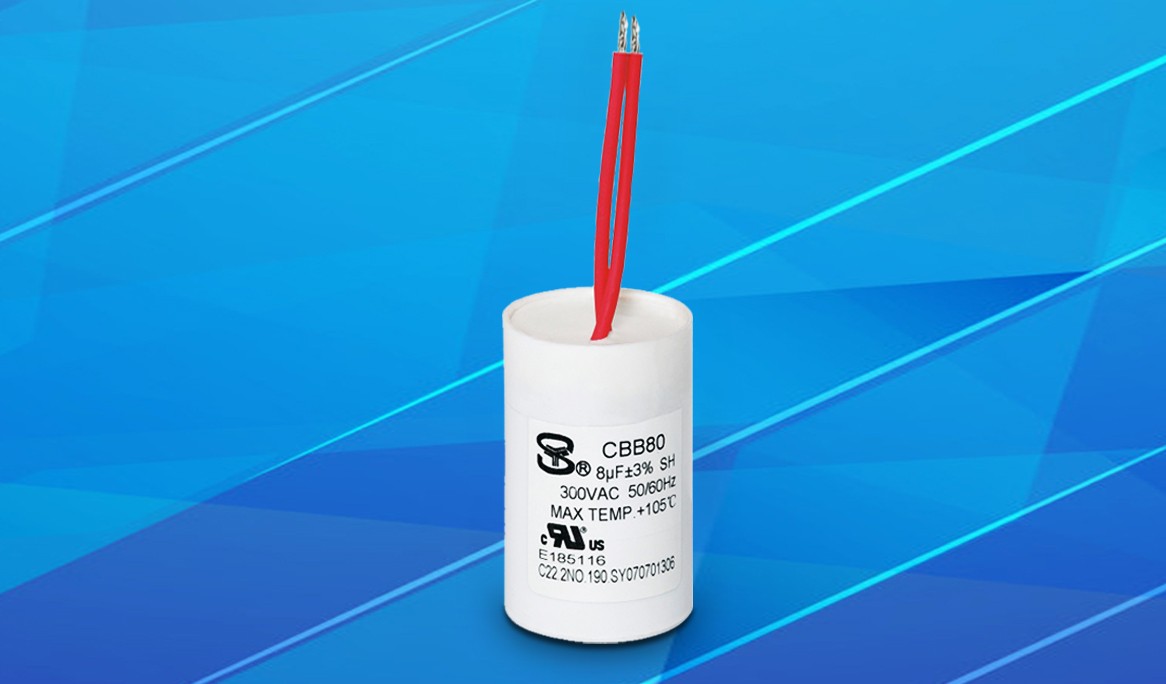

![CBB80灯具电容器系列]( "CBB80灯具电容器系列")
主要技术参数
额定电压：110V.AC-600V.AC | 稳态过电压：允许1.1Un下长期运行 |
| 容量偏差：±3%、±5%、±10% | 稳态过电流：允许1.3ln下长期运行 |
| 耗损角正切值：tgδ≤0.0025(100Hz) | 优选气候类别：40/70/21 40/85/21 40/105/21 |
| 极间耐压：2Un/5s | 安全等级：P0 |
| 极壳耐压：2000V.AC or 2Un+1000VAC |
|
| 产品认证：UL、CUL |
|
规格表
| CBB80灯具电容器规格表 Type CBB80 Lighting capacitor specification sheet |
|
| 180VAC | 240VAC | 280VAC | 330VAC | 400VAC | 525VAC |
|
| 容量 Capacitance(uF) | D | H | D | H | D | H | D | H | D |
| D | H |
|
| 5 | 26 | 53 | 26 | 53 | 30 | 50 | 30 | 60 | 30 | 60 | 35 | 71 |
|
| 6 | 26 | 53 | 26 | 53 | 30 | 50 | 30 | 60 | 35 | 60.5 | 40 | 68 |
|
| 7 | 26 | 53 | 30 | 50 | 30 | 60 | 35 | 60.5 | 35 | 60.5 | 40 | 68 |
|
| 8 | 26 | 53 | 30 | 50 | 30 | 60 | 35 | 60.5 | 35 | 71 | 45 | 75 |
|
| 10 | 26 | 53 | 30 | 50 | 35 | 60.5 | 35 | 71 | 40 | 68 | 45 | 75 |
|
| 11 | 30 | 50 | 30 | 60 | 35 | 60.5 | 35 | 71 | 40 | 68 | 50 | 80 |
|
| 12 | 30 | 50 | 30 | 60 | 35 | 60.5 | 40 | 68 | 40 | 68 | 50 | 80 |
|
| 14 | 30 | 50 | 35 | 60.5 | 35 | 71 | 40 | 68 | 40 | 80 | 50 | 100 |
|
| 16 | 30 | 60 | 35 | 60.5 | 35 | 71 | 40 | 68 | 40 | 93 | 50 | 100 |
|
| 18 | 30 | 60 | 35 | 60.5 | 40 | 68 | 40 | 80 | 40 | 93 | 50 | 100 |
|
| 20 | 35 | 60.5 | 35 | 71 | 40 | 68 | 40 | 93 | 45 | 85 | 50 | 120 |
|
| 22 | 35 | 60.5 | 35 | 71 | 40 | 68 | 40 | 93 | 45 | 93 | 50 | 120 |
|
| 24 | 35 | 60.5 | 35 | 71 | 40 | 80 | 40 | 93 | 45 | 93 | 50 | 120 |
|
| 26 | 35 | 60.5 | 40 | 68 | 40 | 80 | 45 | 85 | 50 | 100 | 60 | 100 |
|
| 28 | 35 | 71 | 40 | 68 | 45 | 85 | 45 | 93 | 50 | 100 | 60 | 100 |
|
| 30 | 35 | 71 | 40 | 68 | 45 | 85 | 45 | 93 | 50 | 100 | 60 | 100 |
|
| 32 | 35 | 71 | 40 | 68 | 45 | 85 | 45 | 93 | 50 | 100 | 60 | 120 |
|
| 34 | 35 | 71 | 40 | 80 | 45 | 85 | 50 | 100 | 50 | 100 | 60 | 120 |
|
| 36 | 35 | 71 | 40 | 80 | 45 | 85 | 50 | 100 | 50 | 110 | 60 | 120 |
|
| 38 | 40 | 68 | 40 | 80 | 45 | 93 | 50 | 100 | 50 | 110 | 60 | 120 |
|
| 40 | 40 | 68 | 45 | 85 | 45 | 93 | 50 | 100 | 50 | 120 | 60 | 120 |
|
| ◆特殊要求可根据用户要求协商制作。Special requirement can be fulfilled at the request of customers. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
